Best Live Imaging Shuttle Battery for Ice Fishing and Portable Sonar
Compare Norsk 14.8V 30Ah and 50Ah lithium batteries for Garmin LiveScope™, Humminbird MEGA Live™, Lowrance ActiveTarget™, Vexilar Vision X10™, portable shuttles, ice fishing, and removable live imaging systems you can carry from ice to boat and back again. Each battery includes the correct charger and SAE connection for cleaner shuttle charging.
Recommended Live Imaging Shuttle Setup
30Ah for the clean, lighter all-day shuttle, including Vexilar Vision X10 Pro Bundle-style builds. 50Ah for max runtime, larger screens, USB accessories, and long ice trips. Both include the correct charger and SAE connection for shuttle charging.
Compare 30Ah vs 50AhCategory
Read Time
A portable live imaging shuttle is a different battery build than a permanent boat electronics system. The point of a shuttle is flexibility: build one clean live imaging system for the ice, then carry that same setup into the boat when you want your own removable live imaging. This guide is built around the two Norsk batteries that make the most sense for serious shuttles: the 14.8V 30Ah and the 14.8V 50Ah. Both include the 16.8V 3A Standard Charger with an SAE-style connection, and the 7A Rapid Charger is the recommended upgrade when you want faster charging between trips.
Quick Answer
What is the best battery for a live imaging shuttle?
For most portable live imaging shuttle builds, choose the 14.8V 30Ah Norsk Lithium battery when you want the best balance of runtime, fit, weight, and portability. It is a strong fit for Garmin LiveScope™ systems, Humminbird MEGA Live™ systems, Lowrance ActiveTarget™ systems, Vexilar Vision X10™, and other portable forward-facing sonar setups.
Step up to the 14.8V 50Ah Norsk Lithium battery when you want maximum runtime for larger displays, high-demand live imaging systems, long ice days, tournaments, USB accessories, or trips where charging between uses is limited. Both 30Ah and 50Ah batteries include the 16.8V 3A Standard Lithium-Ion Charger with an SAE-style connection. Upgrade to the 16.8V 7A Rapid Lithium-Ion Charger when faster turnaround between trips matters.
In This Guide:
01. What a live imaging shuttle needs to power
02. 30Ah vs 50Ah: which Norsk battery fits your shuttle?
03. Included charger and rapid charger upgrade
04. Live imaging system planning
05. Vexilar Vision X10 and Norsk 30Ah power
06. Shuttle manufacturers and fitment notes
What Does a Live Imaging Shuttle Need to Power?
A portable live imaging shuttle is usually built around a display, transducer or live sonar transducer, transducer pole, wiring harness, charge port, switches, and a battery. On the ice, that whole system has to be easy to carry, stable beside the hole, reliable in the cold, and powerful enough to run through the bite window.
That same shuttle can move straight into the boat when the water opens. Instead of buying or wiring a second permanent setup, you can bring your own removable live imaging system with you, set it up where you need it, and move it back to the ice again when winter returns.
That is why the battery choice matters. You are not just powering a screen. You are powering the whole portable system across seasons, including how that system gets charged after the trip. For most shuttle builders, the decision comes down to two Norsk batteries: 30Ah for clean portability or 50Ah for maximum runtime.
Norsk portable sonar batteries include the correct charger and SAE connection, which matters because many popular shuttles use an SAE-style charge port. That makes the battery and charger side of the build easier instead of forcing anglers to hunt for extra adapters before they can charge the shuttle.
Common Mistake: Assuming a Bigger Battery Will Not Fit Your Shuttle
Many anglers undersize portable live imaging power because they assume a 30Ah or 50Ah battery will not fit their shuttle. Norsk portable sonar batteries are built for the common third-party shuttle ecosystem, and the 30Ah and 50Ah options fit the most common shuttle builds from brands like ArcLab, Fin Gear, Fish Armor, HD Innovations, Summit, and TKI. Start with fitment confidence, then choose 30Ah for the clean all-around build or 50Ah when runtime is the priority.
30Ah vs 50Ah: Which Norsk Battery Fits Your Shuttle?
14.8V 30Ah Lithium-Ion Battery
The 30Ah is the clean all-around choice for most live imaging shuttles. It gives you dependable runtime without making the setup feel oversized or heavy.
Best for portable ice builds, common shuttle platforms, and anglers who want one removable live imaging system they can carry from ice to boat and back again.

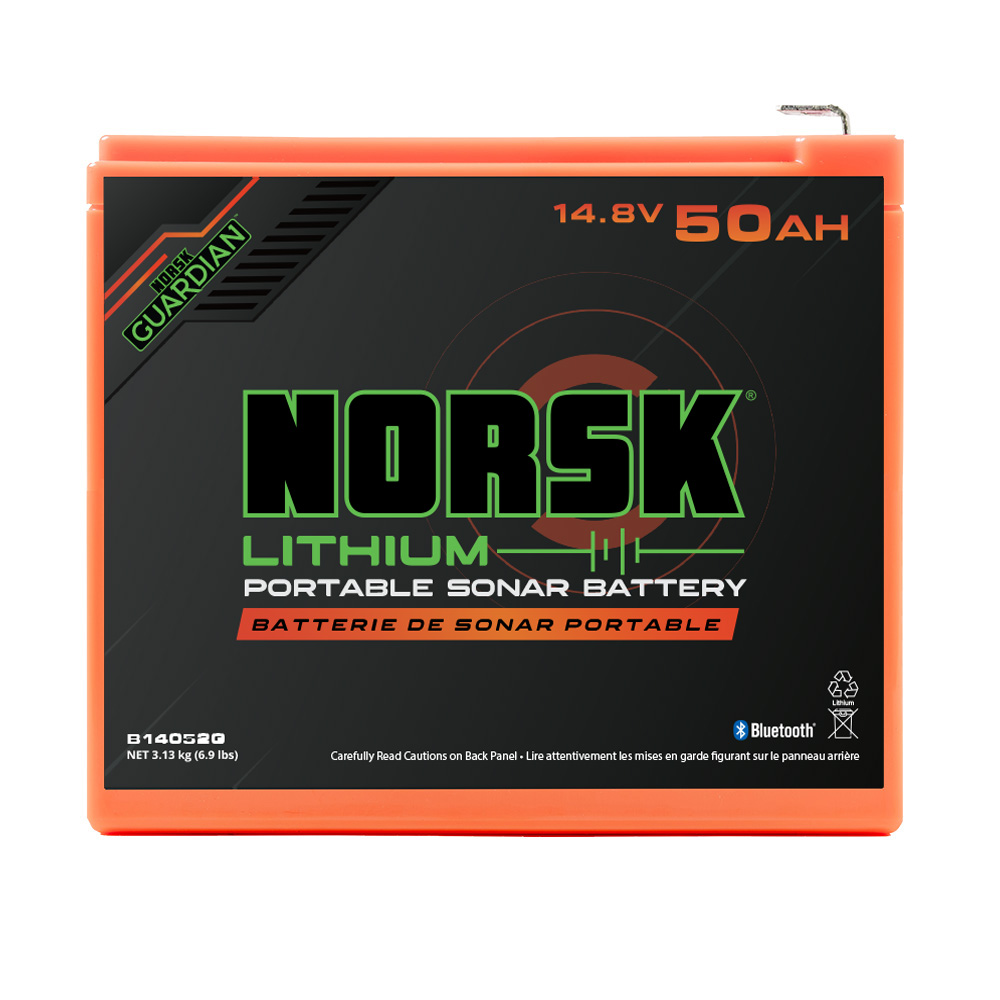

14.8V 50Ah Lithium-Ion Battery
The 50Ah is the premium choice when runtime matters most. It adds more reserve for larger displays, long ice days, tournaments, accessories, and limited charging time.
Best for serious LiveScope, MEGA Live, ActiveTarget, Vision X10, and forward-facing sonar shuttle builds where extra runtime matters more than shaving weight.
| Shuttle Use | Best Norsk Battery | Why It Fits |
|---|---|---|
| Compact ice shuttle | 14.8V 30Ah | Best balance of runtime, carry weight, shuttle simplicity, and included charger/SAE connection for most portable live imaging anglers. |
| Garmin LiveScope 2 / 2 HD shuttle | 14.8V 50Ah | More capacity for LiveScope systems, larger screens, USB accessories, long fishing days, and SAE-ready shuttle charging. |
| Humminbird MEGA Live 2 shuttle | 14.8V 30Ah or 50Ah | 30Ah works for lighter builds. 50Ah is the better match for XPLORE-size screens, ice bundles, max-runtime setups, and longer time between charges. |
| Lowrance ActiveTarget 2 shuttle | 14.8V 30Ah or 50Ah | 30Ah is a clean portable option. 50Ah adds margin for high-brightness screens, longer trips, accessory draw, and less charging anxiety. |
| One shuttle for ice + boat | 14.8V 50Ah | Extra capacity makes the same shuttle easier to use when it moves from ice season into the boat and back again, especially when you want your own removable live imaging system with simple SAE charging instead of a permanent install. |
*Always confirm your sonar manufacturer’s voltage range, fuse guidance, cable sizing, SAE charge-port wiring, charger compatibility, and installation instructions before wiring a shuttle.
Included Charger and Rapid Charger Upgrade
Charging Setup
Every 30Ah and 50Ah includes a charger. Upgrade when faster turnaround matters.
Norsk 30Ah and 50Ah portable sonar batteries include the 16.8V 3A Standard Charger with an SAE-style connection for cleaner shuttle charging. For heavy use, the 16.8V 7A Rapid Charger is the recommended upgrade.
16.8V 3A Standard Charger
Included with every Norsk 30Ah and 50Ah portable sonar battery. The clean baseline charger for most live imaging shuttle builds.
View 3A Charger
16.8V 7A Rapid Charger
Upgrade for faster turnaround between ice trips, tournaments, travel days, and repeated shuttle use when charging time is limited.
View 7A ChargerLiveScope, MEGA Live, ActiveTarget, and Vision X10 Battery Planning
System Planning
Build for the whole live imaging category, not just one model year.
Garmin, Humminbird, Lowrance, and Vexilar systems all need the same basic shuttle planning: enough battery capacity for the display, live sonar hardware, accessories, cold weather, and the runtime you expect from ice to boat and back again.
Garmin LiveScope / LiveScope 2
30Ah for clean portable builds. 50Ah for LiveScope 2 HD, larger screens, long sessions, and more reserve.
Humminbird MEGA Live / MEGA Live 2
30Ah for lighter shuttles. 50Ah for bigger displays, ice bundles, and max-runtime open-water crossover use.
Lowrance ActiveTarget / ActiveTarget 2
30Ah keeps the shuttle portable. 50Ah adds runtime margin for bright screens, accessories, and longer trips.
Vexilar Vision X10
The Pro Bundle validates Norsk 30Ah power. Step up to 50Ah when you want maximum runtime margin.
Vexilar Vision X10 and Norsk 30Ah Shuttle Power
Vexilar Vision X10 Pro Bundle
The X10 Pro Bundle already includes Norsk 30Ah power.
Vexilar’s Vision X10 Pro Bundle is a strong real-world proof point for this guide. The bundle includes the Vision Shuttle, 10-inch touchscreen display, telescoping transducer pole, accessories, and a 30Ah Norsk battery and charger.
That makes the 30Ah Norsk battery the clean recommendation for anglers who want a proven, balanced live sonar shuttle build. For anglers building their own Vision X10, LiveScope, MEGA Live, or ActiveTarget shuttle and wanting even more runtime margin, the 50Ah is the step-up choice. The same logic applies to newer systems like LiveScope 2, MEGA Live 2, and ActiveTarget 2 when larger screens or long run times are part of the build.
Shuttle Manufacturers and Fitment Notes
Norsk 14.8V portable sonar batteries are a strong fit for the most common third-party forward-facing sonar and live imaging shuttles. Both the 30Ah and 50Ah are built to work in the common shuttle ecosystem used by Garmin LiveScope, Humminbird MEGA Live and MEGA Live 2, Lowrance ActiveTarget and ActiveTarget 2, Vexilar Vision X10, and other portable sonar systems.
The key is to treat the shuttle, battery, wiring, pole, fuse, charger, and display as one system instead of separate parts. A well-built shuttle can move from ice season into almost any boat where you want your own removable live imaging system, then go right back onto the ice when winter returns. Confirm battery-compartment dimensions, cable routing, polarity, charge-port style, and any manufacturer-specific wiring requirements before final assembly, but do not assume you need to drop to a small battery just to make the shuttle work.

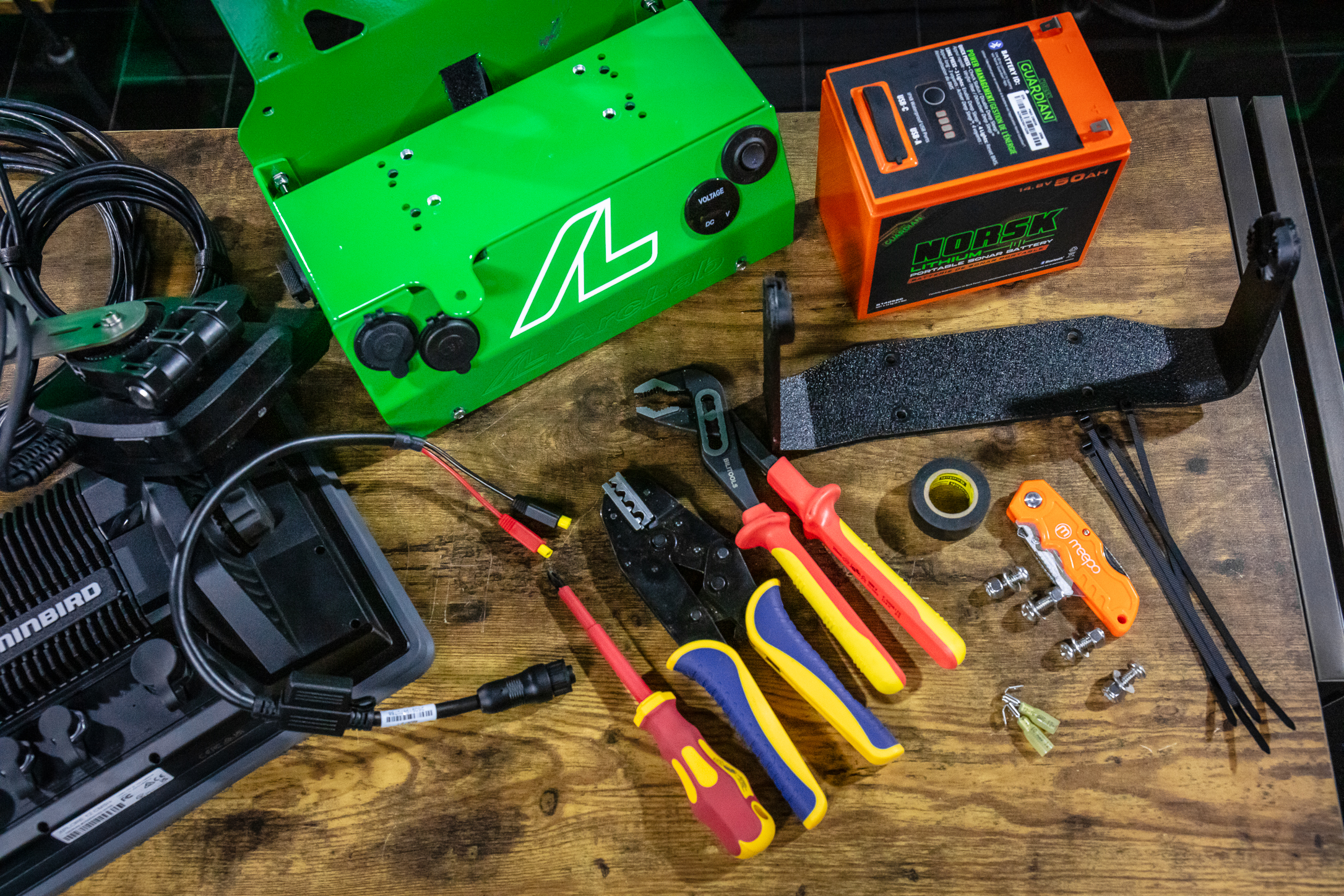

ArcLab
Aluminum 5200 Series-style electronics shuttles; strong for rugged open-frame Garmin, Humminbird, and Lowrance live imaging builds.
Fin Gear
Tech Shuttle-style builds with integrated power, charge, USB, harness, and compatibility with major electronics brands.
Fish Armor
Roto-molded protective shuttle systems with compact enclosed options for LiveScope, MEGA Live, and ActiveTarget setups.
HD Innovations
HDI shuttle kits and bags built for portable sonar and forward-facing sonar setups across ice and open water.
Summit Fishing
Portable shuttles, poles, bags, and boat mounting solutions for moving live imaging between ice and boat.
TKI CNC
Machined shuttles, graph plates, and live pole mounting systems for anglers who want a premium aluminum/CNC platform.
Runtime, Wiring, and Shuttle Build Considerations
Runtime is affected by total amp draw, display size, screen brightness, USB accessories, wiring quality, and how much capacity you are willing to carry. A 30Ah battery can be the right answer for a lighter all-around shuttle, while a 50Ah battery gives more confidence for long sessions, bigger electronics, and a system that moves from hardwater to open water.
Live imaging shuttles are also sensitive to setup details. Use the correct charger, confirm fuse protection, avoid undersized wiring, route cables cleanly, and make sure the battery is secure inside the shuttle. The 30Ah and 50Ah batteries include the 16.8V 3A Standard Charger with an SAE-style connection for common shuttle charge-port setups. Upgrade to the 16.8V 7A Rapid Charger when you need faster turnaround between trips, but still confirm wiring polarity and the shuttle manufacturer’s instructions before final assembly.
Clean 14.8V Power
Built specifically for live imaging, 360 sonar, and forward-facing sonar systems that need stable portable power.
Shuttle-Friendly Fit
30Ah and 50Ah options cover lightweight builds and maximum-runtime shuttle builds across leading shuttle platforms.
Smart Battery Control
Guardian app monitoring, Deep Sleep, power management, and USB features help simplify portable fishing electronics.
Key Features to Look for in a Live Imaging Shuttle Battery
14.8V Output for Live Imaging
Designed for Garmin LiveScope and LiveScope 2, Humminbird MEGA Live and MEGA Live 2, Lowrance ActiveTarget and ActiveTarget 2, plus other high-draw sonar applications.
Included 3A Charger + SAE Shuttle Connection
The 30Ah and 50Ah portable sonar batteries include the 16.8V 3A Standard Charger with an SAE-style connection for cleaner charging through many common shuttle charge-port setups.
Optional 7A Rapid Charger Upgrade
Upgrade to the 16.8V 7A Rapid Charger when you need faster recharge time between ice trips, travel days, tournaments, or repeated shuttle use.
USB-A and USB-C Accessory Power
Charge phones, cameras, lights, or other small accessories directly from the battery when your shuttle build calls for it.
Deep Sleep™ Storage Protection
Deep Sleep helps prevent phantom draw during storage, which matters when ice gear sits between trips or seasons.
Norsk Guardian® App Monitoring
Bluetooth monitoring helps anglers check battery status, voltage, temperature, and current draw from a phone.
Live Imaging Shuttle Battery FAQ
What is the best battery for a live imaging shuttle?
For most portable live imaging shuttle builds, the 14.8V 30Ah Norsk Lithium battery is the best balance of runtime, fit, weight, and portability. It is a strong fit for Garmin LiveScope, Humminbird MEGA Live, Lowrance ActiveTarget, Vexilar Vision X10, and other forward-facing sonar shuttles. Choose the 14.8V 50Ah battery for maximum runtime, larger screens, USB accessories, long ice days, tournaments, or multi-day trips. Both include the correct charger and SAE connection for cleaner shuttle charging.
Does the Vexilar Vision X10 Pro Bundle include a Norsk battery?
Yes. Vexilar lists the Vision X10 Live View System Pro Bundle with a 30Ah Norsk battery and charger. That makes Norsk 30Ah power a proven match for a premium live sonar shuttle package. Builders who want maximum runtime can still step up to the Norsk 50Ah battery when shuttle fit and weight preferences allow.
Is the 30Ah or 50Ah better for live imaging systems?
The 30Ah battery is better when you want a lighter, cleaner shuttle for most Garmin LiveScope, Humminbird MEGA Live, Lowrance ActiveTarget, Vexilar Vision X10, and similar live imaging builds. The 50Ah battery is better when runtime matters most, especially with larger displays, newer high-demand systems, USB accessories, tournaments, multi-day trips, and anglers moving one shuttle from ice to boat and back again.
Do Norsk batteries fit ArcLab, Fin Gear, Fish Armor, HD Innovations, Summit, and TKI shuttles?
Norsk portable sonar batteries are designed to fit the most common third-party shuttles from ArcLab, Fin Gear, Fish Armor, HD Innovations, Summit, and TKI, but you should always confirm the current shuttle battery compartment, wiring harness, charge port, and connector requirements before final assembly.
Can I use my ice live imaging shuttle in the boat?
Yes. Many anglers use one shuttle on the ice and then bring that same removable live imaging system into the boat during open-water season. A shuttle is a great mobile option when you want your own sonar setup without wiring a permanent install. For a dedicated boat system with multiple graphs, a 16V onboard electronics battery may be the better long-term setup.
Do newer live imaging systems need a bigger battery?
Not automatically. The right battery depends on total system draw, screen size, accessories, temperature, wiring quality, and runtime goal. Because LiveScope 2 HD, MEGA Live 2, ActiveTarget 2, and larger displays are premium setups, many anglers choose 50Ah for more margin.
Why use a 14.8V battery for live imaging?
Norsk 14.8V portable sonar batteries are designed for live imaging and forward-facing sonar systems and provide clean higher-voltage power with strong runtime in compact shuttle-friendly sizes.
Do Norsk portable sonar batteries include a charger with an SAE connection?
Yes. Norsk portable sonar batteries include the correct charger, and the SAE connection makes it easier to plug into most common shuttle charge-port setups. Always confirm polarity, wiring, and your shuttle manufacturer’s instructions before final assembly.
Should I upgrade to the 16.8V 7A Rapid Charger?
Upgrade to the 16.8V 7A Rapid Lithium-Ion Charger if you fish often, run long days, travel, tournament fish, or need the same 30Ah or 50Ah shuttle battery ready again faster between trips. The included 3A charger is the standard baseline; the 7A charger is the speed upgrade.
What should I check before wiring a live imaging shuttle?
Check electronics voltage range, fuse size, wire gauge, SAE charge-port wiring, connector style, polarity, charger compatibility, battery compartment dimensions, cable routing, and the manufacturer’s installation instructions.
Why does this guide focus on 30Ah and 50Ah?
For live imaging shuttles, the 30Ah is the clean all-around recommendation and the 50Ah is the premium maximum-runtime recommendation. That keeps the buyer path simple for anglers building portable sonar shuttles around modern live imaging systems.
Need help choosing?
Have More Questions?
Ask Odin for help choosing the right 30Ah or 50Ah live imaging shuttle battery.
Build Your Live Imaging Shuttle the Right Way
Choose Norsk 14.8V 30Ah for a clean all-around portable shuttle or step up to 50Ah for maximum runtime, LiveScope, MEGA Live, ActiveTarget, Vision X10, larger displays, long days on the ice, and open-water boat use. Both options include the correct charger and SAE connection for cleaner shuttle charging.
Shop Live Imaging BatteriesSuperior Lithium Power™ for live imaging shuttles.
