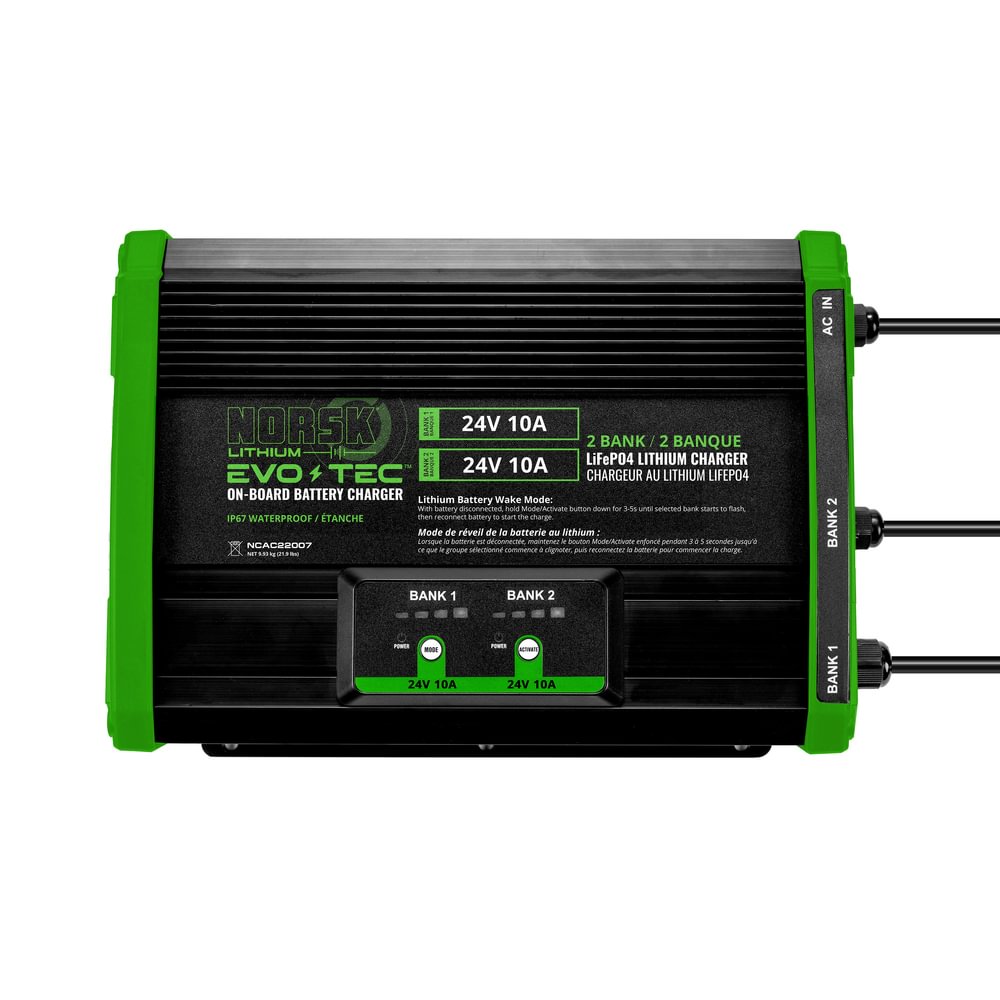

The EVO-TEC™ 24V/24V 10A – 2 Bank On-Board Charger delivers efficient, reliable charging for dual 24V lithium battery systems. Providing a dedicated 10 amps per bank, it maximizes battery performance while ensuring your power systems are always ready for the next adventure.
EVO-TEC™ 24V/24V 10A – 2 BANK ON-BOARD CHARGER – NORSK LITHIUM
The EVO-TEC™ 24V/24V 10A – 2 Bank On-Board Charger represents the next evolution in marine charging technology, delivering reliable, intelligent power management for dual 24V lithium battery systems. Designed specifically for demanding marine applications, this advanced charger provides a dedicated 10 amps of charging power per bank, ensuring each battery receives consistent, optimized charging performance.
Whether you’re powering sophisticated electronics, trolling motors, or auxiliary systems, the EVO-TEC™ charger keeps your batteries ready for every outing. Its intelligent charging profile is engineered to maximize battery performance, improve charging efficiency, and help extend battery life, so you can spend less time charging and more time on the water.
Built to withstand harsh marine environments, the EVO-TEC™ combines rugged durability with industry-leading safety features. Advanced protection systems continuously monitor charging conditions to safeguard both your batteries and onboard electrical systems. Burnout protection, reverse polarity protection, no-load protection, short-circuit protection, and automatic shutdown functionality provide confidence and peace of mind in every installation.
Compact, efficient, and easy to integrate into a wide range of vessels, the EVO-TEC™ 24V/24V 10A charger delivers the flexibility and reliability modern boaters demand. From weekend anglers to serious tournament competitors, it’s the ideal charging solution for maintaining peak battery performance and dependable power when it matters most.
ON-BOARD MOUNTING
EVO-TEC™ chargers are built for permanent on-board installation, giving you dependable charging access whenever your boat, fish house, or battery system is ready to plug in.
LITHIUM WAKE MODE
Easily wake a connected lithium battery from sleep mode by holding the charger’s mode button for 3–5 seconds. This helps reactivate the battery so charging can begin without needing to disconnect or jump-start the battery.
AUTOMATIC SHUTDOWN WHEN FULLY CHARGED
The Automatic Shutdown When Fully Charged feature of the Norsk Lithium® Evo-Tec™ On-Board Charger ensures optimal battery care and safety. Once the battery reaches full charge, the charger automatically stops the charging process to prevent overcharging and extend battery life.
REVERSE CONNECTION PROTECTION
The Reverse Connection Protection feature of the Norsk Lithium® Evo-Tec™ On-Board Charger provides critical defense against improper battery connections. This intelligent safety system detects if the battery cables are connected to the wrong terminals and immediately prevents charging to avoid damage.
OVER TEMPERATURE PROTECTION
When the temperature of the radiator inside the charger is more than or equal to 80℃ ±5℃ (176°F ±9°F), the charger will automatically reduce the output current for over temperature protection. When the internal temperature drops, the charging current will gradually increase and finally recover to max output. A waterproof cooling fan is installed outside the charger. When the bottom aluminum stretched plate’s temperature is higher than or equal to 50℃ ±5℃ (122°F ±9°F), the fan will work. When the bottom aluminum stretched plate’s temperature is lower than or equal to 40℃ ±5℃ (104°F ±9°F), the fan stops working.
BURNOUT PROTECTION
The Burnout Protection built into the Norsk Lithium® Evo-Tec™ On-Board Charger provides an essential safeguard against overheating and overloading. This advanced protection system monitors the charger’s internal temperature and power flow, automatically shutting down the charger if it detects conditions that could lead to burnout or damage.
IP67 WATERPROOF
The IP67 Waterproof rating of the Norsk Lithium® Evo-Tec™ On-Board Charger provides exceptional protection against environmental elements, making it highly suitable for harsh marine conditions. This rating ensures that the charger is completely dust-tight and can withstand submersion in water up to 1 meter deep for up to 30 minutes.
FULLY POTTED CASE W/ EPOXY RESIN
The Fully Potted Case W/ Epoxy Resin used in the Norsk Lithium® Evo-Tec™ On-Board Charger offers superior protection and durability by encapsulating the internal components in high-quality epoxy resin. This robust construction provides excellent resistance to moisture, dust, and vibrations, ensuring the charger remains operational even in harsh and challenging environments.
CORE SPECIFICATIONS
Bank 1 Rated Voltage:
24V
Bank 2 Rated Voltage:
24V
Input Voltage:
105-125V AC, 60Hz
Charging Banks:
Bank 1 = Fixed Voltage 24V
Bank 2 = Fixed Voltage 24V

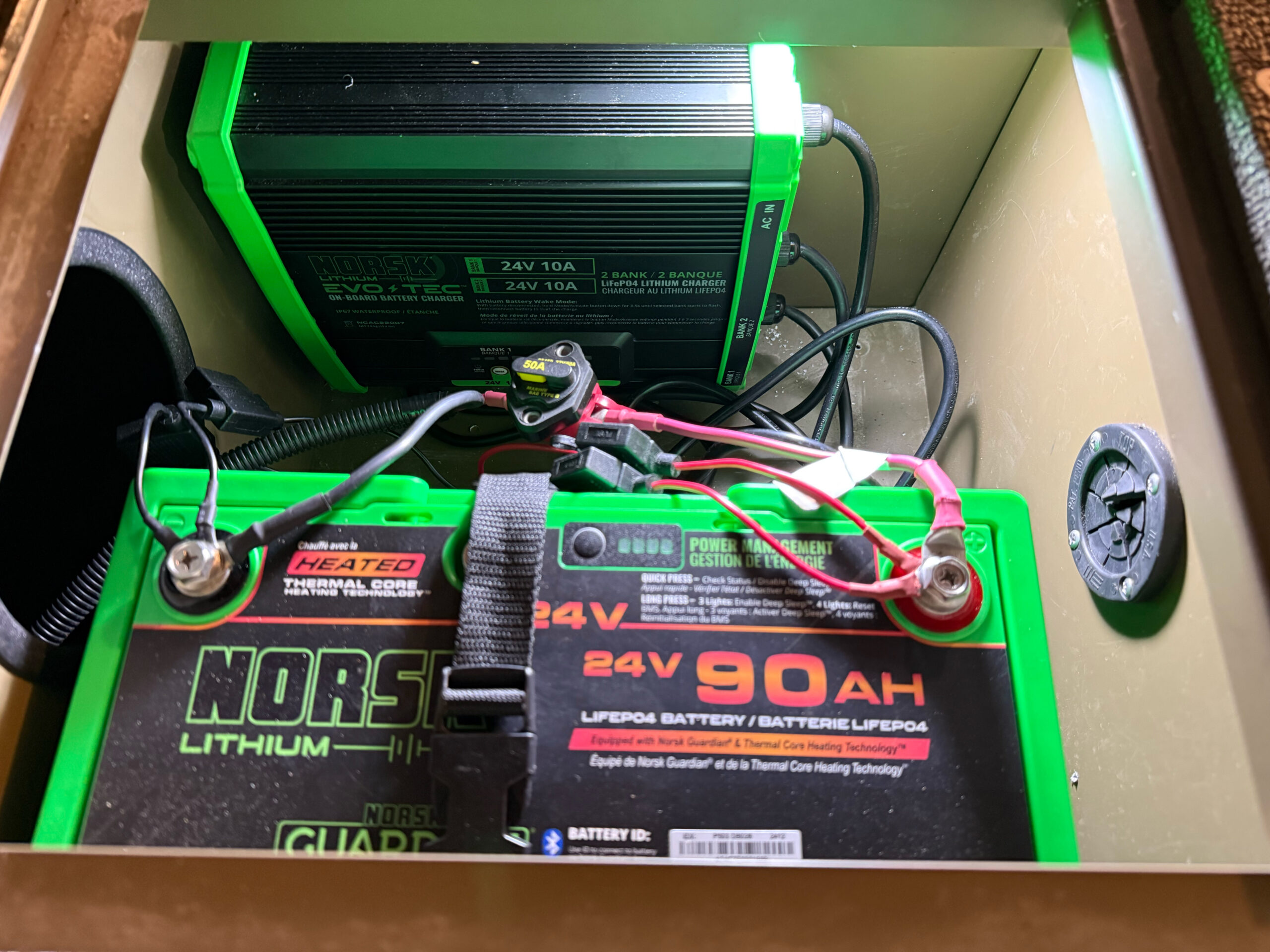

I have a 24V 90AH heated battery from Norsk on my tiller boat and it’s paired with this 2 bank charger. I wired both banks on the single battery so I can warm the battery faster in cold temps and charge at 20A. This setup would charge my battery from zero to full in only 4.5 hours!!
EVO-TEC™ chargers are built for permanent on-board installation, giving you dependable charging access whenever your boat, fish house, or battery system is ready to plug in.
LITHIUM WAKE MODE
Easily wake a connected lithium battery from sleep mode by holding the charger’s mode button for 3–5 seconds. This helps reactivate the battery so charging can begin without needing to disconnect or jump-start the battery.
AUTO SHUTDOWN
EVO-TEC chargers automatically stop charging once the battery is fully charged, ensuring safety, preventing overcharging, and extending battery life.
REVERSE PROTECTION
EVO-TEC chargers safeguard against improper connections by detecting reversed cables and preventing charging to avoid damage.
OVER TEMP PROTECTION
The charger automatically adjusts to prevent overheating. If it gets too hot, it reduces power until it cools down, then gradually returns to full output. A waterproof cooling fan also kicks in when needed to keep everything running safely.
BURNOUT PROTECTION
Provides an essential safeguard against overheating and overloading. This advanced protection system monitors the charger’s internal temperature and power flow, automatically shutting down the charger if it detects conditions that could lead to burnout or damage.
IP67 WATERPROOF
EVO-TEC chargers are rated IP67 providing superior protection against water, dust, vibration, and harsh marine conditions for long-lasting durability.
FULLY POTTED
Evo-Tec™ On-Board Chargers offer superior protection and durability by encapsulating the internal components in high-quality epoxy resin. This provides excellent resistance to moisture, dust, and vibrations, ensuring the charger remains operational even in harsh and challenging environments.
Admin Kyle Koisti –
I have a 24V 90AH heated battery from Norsk on my tiller boat and it’s paired with this 2 bank charger. I wired both banks on the single battery so I can warm the battery faster in cold temps and charge at 20A. This setup would charge my battery from zero to full in only 4.5 hours!!
